Product Details:
Payment & Shipping Terms:
|
| Pressure: | High Medium Pressure | Power: | Hydraulic |
|---|---|---|---|
| Structure: | Gear Pump | Material: | Auminum Alloy |
| Color: | Same As Photo | Warranty: | 1 Year |
| High Light: | commercial hydraulics gear pumps,hydro gear pump |
||

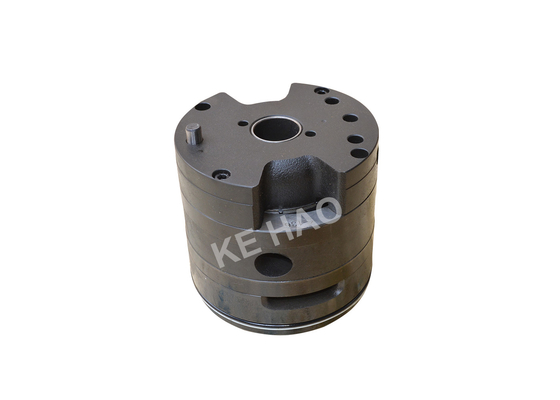

Full hydraulic Motor steering gear D7F Bulldozer Hydraulic Gear Pump PV2R3-136
What parameter you need to send us :
If you need the gear pump , please send us the pump picture and machine model , so we can check it easily .
If you need the hydraulic pump parts , you can send us the size of the piston shoe , so we can check the parts according to the piston shoe size , but it will be better if you send me the nameplate of the pump and pump picture .
Product Description:
| Part No | PV2R3-136 |
| Condition | New |
| OEM | Yes(Made In China) |
| Material | Aluminium Alloy |
| Spare Parts | Special Designed wearable Spline,O-rings and bushes to last long service life |
| Characters | No Oil Leak, Durable Shaft, Genuine Standard |
| Warranty | One Year |
| Package | Standard Export Wooden/Carton Cases |
| Weight | About 0.5-1KG |
| Appliion | Loader, Dozer, Excavator, Dumper, Grader, tractor, forklift truck etc. |
| Delivery Time | About 1-6 Days After Receiving The Deposit(Based On The Quantity) |
| Price | Factory Supply With Competitive Price |
| Quality Control | All Pumps Will Be Tested And Double Checked Before Shipping To Make Sure What You Received Is Perfect. |
| Payment | Flexible Payment As TT,Western Union,Paypal, Credit Card, Visa etc. |
| series | gression (mL/r) |
maximum pressure(MPA) | speed(r / min) | interiorinput power (kW) |
|||
| Special oil | Antiwear oil | Common oil | Min. | Max. | |||
| PV2R1-4 | 4.3 | 21 | 171.5 | 16 | 750 | 1800 | 2.1 |
| PV2R1-6 | 6.5 | 3.2 | |||||
| PV2R1-8 | 8.5 | 4.5 | |||||
| PV2R1-10 | 10.8 | 5.4 | |||||
| PV2R1-12 | 12.8 | 6.1 | |||||
| PV2R1-14 | 14.5 | 6.9 | |||||
| PV2R1-17 | 16.2 | 7.9 | |||||
| PV2R1-19 | 20.1 | 9.6 | |||||
| PV2R1-23 | 22.5 | 10.5 | |||||
| PV2R1-25 | 25.3 | 12.5 | |||||
| PV2R1-28 | 29.6 | 14 | |||||
| PV2R1-31 | 32.3 | 16 | 16 | 15.5 | |||
| PV2R2-26 | 25.3 | 21 | 17.5 | 14 | 600 | 1800 | 11.7 |
| PV2R2-33 | 32.3 | 15.5 | |||||
| PV2R2-41 | 39.8 | 18.9 | |||||
| PV2R2-47 | 49.8 | 23.2 | |||||
| PV2R2-53 | 51.5 | 24 | |||||
| PV2R2-59 | 55.8 | 24.9 | |||||
| PV2R2-65 | 63.7 | 29.4 | |||||
| PV2R2-70 | 70.3 | 16 | 1200 | 31.6 | |||
| PV2R2-79 | 78.1 | 35.7 | |||||
| PV2R2-85 | 82.7 | 37.5 | |||||
| PV2R3-52 | 51.5 | 21 | 17.5 | 14 | 600 | 1800 | 23.2 |
| PV2R3-60 | 63.7 | 29.4 | |||||
| PV2R3-66 | 66.6 | 34.2 | |||||
| PV2R3-76 | 75.5 | 37.7 | |||||
| PV2R3-94 | 89.5 | 41.2 | |||||
| PV2R3-116 | 118 | 16 | 16 | 50 | |||
| PV2R3-125 | 122.2 | 1200 | 59.9 | ||||
| PV2R3-136 | 136 | 66.7 | |||||
Note : 1. When the pressure of the pump exceeds 16 MPa and the displacement is "4"6"8", the speed shall be greater than 145 or /min.
2. Reduce the negative pressure of the inlet when the single pump or double pump has a large displacement at high speed.
3 .Limit the maximum speed to 12oor/min when using synthetic hydraulic fluids and water containing hydraulic fluids.
4 .It is recommended to run at a speed of 1ooor/min with strict requirements for low noise.
5. Noise can be obtained under working conditions of 14 MPa and 12oor/min. Input power at 16 MPa and 1500r / min available under working conditions .
Instruction Manual of Installationand Operation for Gear Pump
In developed industry market, the spare parts of gear pump achieved sophistied . Therefore , check of clean oil with operation before using pump. The installation should be according to the ex-works technical documents of gear pump , and related specifiion of this manual , also the pump structure should be taken into consideration .
