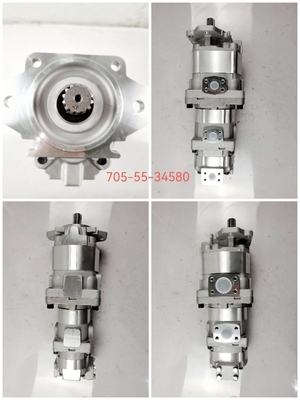

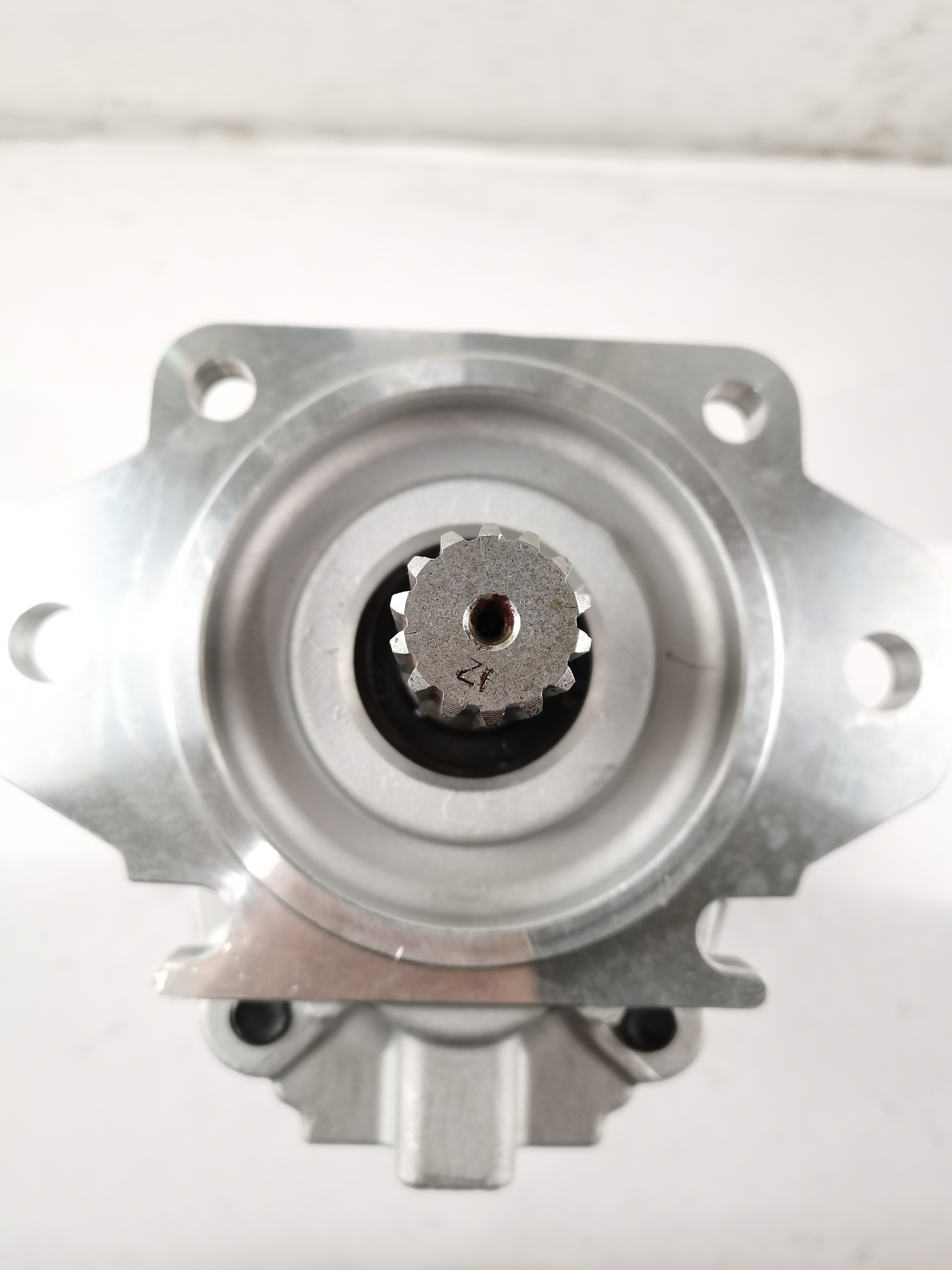

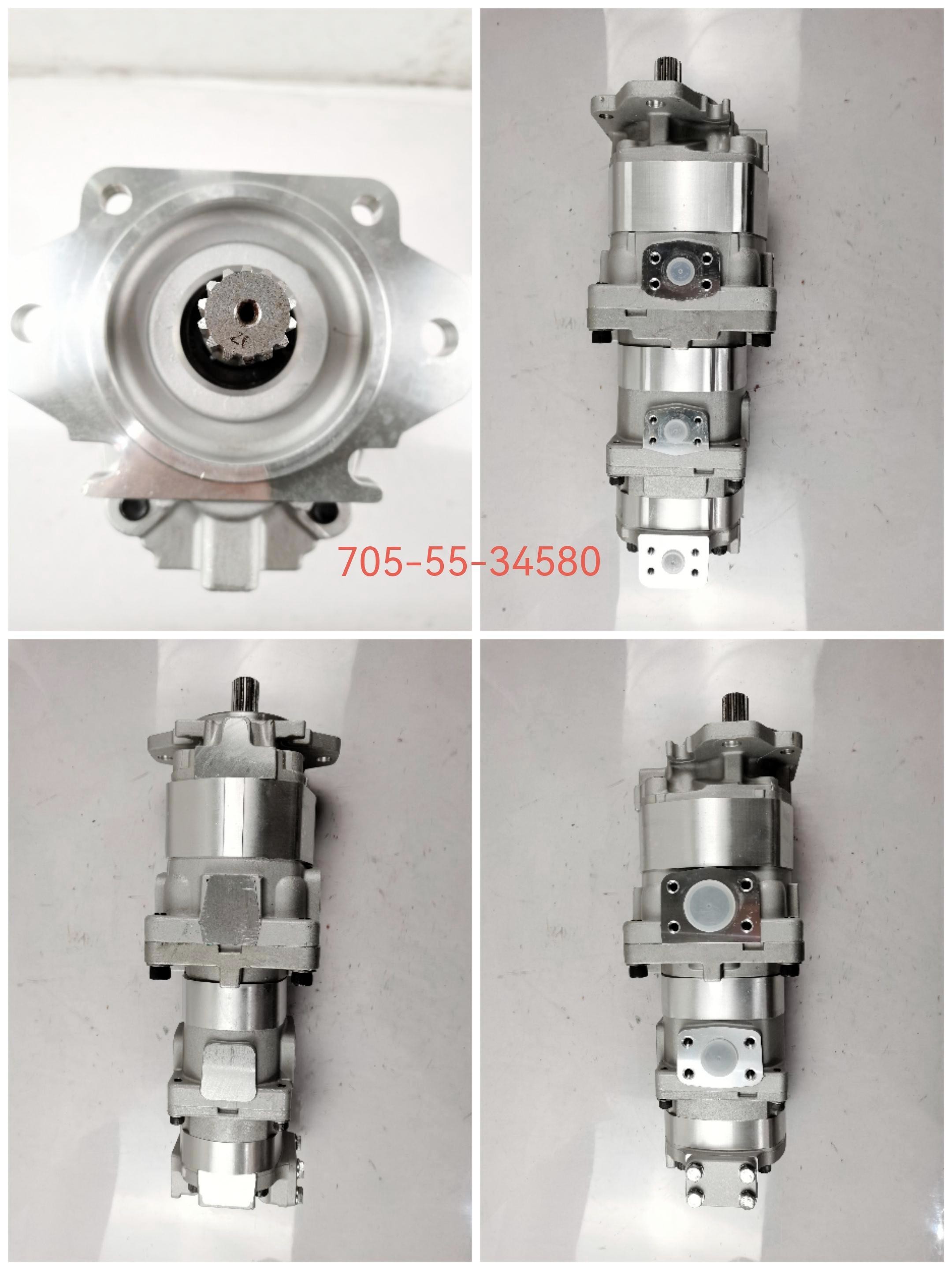

Shantui Bulldozer 705-55-34580 Triple Pump D155AX-5

Shantui Bulldozer 705-55-34580 Triple Pump D155AX-5


gear pumps are compact and simple with a limited number of moving parts. They are unable to match the pressure generated by reciprocating pumps or the flow rates of centrifugal pumps but offer higher pressures and throughputs than vane or lobe pumps. Gear pumps are particularly suited for pumping oils and other high viscosity fluids.

Of the two designs, external gear pumps are capable of sustaining higher pressures (up to 3000 psi) and flow rates because of the more rigid shaft support and closer tolerances. Internal gear pumps have better suction capabilities and are suited to high viscosity fluids, although they have a useful operating range from 1cP to over 1,000,000cP. Since output is directly proportional to rotational speed, gear pumps are commonly used for metering and blending operations. Gear pumps can be engineered to handle aggressive liquids. While they are commonly made from cast iron or stainless steel, new alloys and composites allow the pumps to handle corrosive liquids such as sulphuric acid, sodium hypochlorite, ferric chloride and sodium hydroxide.

External gear pumps can also be used in hydraulic power applications, typically in vehicles, lifting machinery and mobile plant equipment. Driving a gear pump in reverse, using oil pumped from elsewhere in a system (normally by a tandem pump in the engine), creates a hydraulic motor. This is particularly useful to provide power in areas where electrical equipment is bulky, costly or inconvenient. Tractors, for example, rely on engine-driven external gear pumps to power their services.

part number	Compatible equipment	Weight(kgs)
705-55-34580	bulldozers-D155AX-5	15
705-11-30110	BULLDOZERS D455A	6.181	SAL40
705-11-34100	WHEEL LOADERS 530, 530B	6.98	SAL50
705-11-34110	CRANES LW160		SAL5 SAL45
705-12-28010	GD300A, GD605A, GD655A, GS360	4.58	SAR25
705-21-28270	WHEEL LOADERS WA380Z		SAL (1) 25
705-21-31020	D31A, D31AM, D31E, D31P, D31PG, D31PL, D31PLL, D31Q, D31S, D31SM, D37A		SAL2-36
705-21-32050	BULLDOZERS D85A, D85E, D85P	6.32
705-11-38010	D60P, D65E, D65P, D70LE, D85E, D85ESS	13.242	SAL(3)080
705-22-26260	BULLDOZERS D41E D41P Komatsu	4.3
705-22-28310	DUMP TRUCKS HD465, HD605	4.592
705-22-29000	BULLDOZERS D455A	5.75	SAR28 13T
705-22-40160	BULLDOZERS D155A D155AX DUMP TRUCKS HM400 Komatsu	16.04	SAR100
705-40-01020	BULLDOZERS, WHEEL LOADERS D-series and HM300, PC60, PC70, WA380/380Z/ 430/470	3.6
705-41-08001	EXCAVATORS PC20, PC30, PC38UU	8.301	SBR(1)-10+10+8
705-41-08070	EXCAVATORS PC10, PC15, PC20	8.26
705-41-08180	EXCAVATORS PC07		SBR10+10+6+2.5
705-41-08210 705-41-08240	EXCAVATORS PC28UD, PC28UG, PC28UU	10	SBR11+11+7+2.5
705-41-08260	EXCAVATORS PC38UU, PC38UUM	8.86	11+11+7+2.5
705-51-20300	WHEEL LOADERS WA250	13.922	SAL50+40 2+2
705-51-20370	BULLDOZERS, CRN D60P, D65E, D65EX, D65P, D65PX, D70LE, D85E, D85ESS
705-51-30290	BULLDOZERS D155A, D155AX	29
705-51-11020	WA70, WR8	9.96
705-52-30390	WHEEL LOADERS WA400 WA420 Komatsu	22.232	SAR100+28
705-52-30490	WA500, WD500, WF550, WF550T		SAR100+28 1+2
704-12-26120	GD605A	6.5
705-34-25640	DUMP TRUCKS HM350 Komatsu		SAR18
705-52-31070	EXCAVATORS PC750 PC750SE PC800 PC800SE Komatsu	20.102
705-56-26081	WHEEL LOADERS WA200 WA200PT Komatsu	21
705-55-34560	FORKLIT FD250	42
705-56-34240	WA420
704-11-38100	D50
705-52-30390	WA400, WA420	22.232	SAR100+28
705-22-40160	BULLDOZERS, DUMP TRUCKS D155A, D155AX, HM400	16.04
705-22-26260	BULLDOZERS D41E, D41P	4.3
705-11-26040	WHEEL LOADERS WA50	4.3	SAR25 10T
705-11-26010	EXCAVATORS PW150
