Payment & Shipping Terms:
|Pressure:||High Medium Pressure||Power:||Hydraulic|
|Structure:||Gear Pump||Material:||Steel,aluminum Alloy,steel / Bronze Gear|
|Warranty:||1 Year||Color:||Same As Photo|
skid steer hydraulic pump

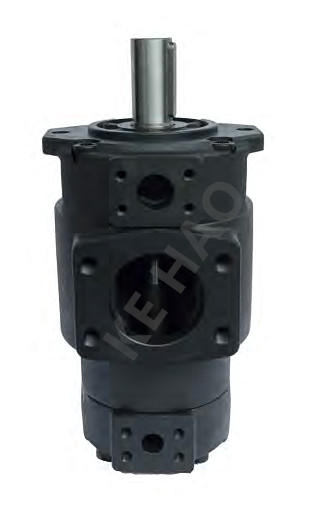

QHP Series Servo Double Pump
|Series||Flow code of shaft and pump||Flow code of cover and pump||shaft type||Rotation||Sealing level|
|QHP22||16/20/25/32/40/50/63||16/20/25/32/40/50/63||see shaft size||(View from shaft end of pump R-Clockwise(CW) L-Counterclockwise(CCW)||NBR
Working principle of double-acting vane pump
The method is similar to the single-acting vane pump, except that the stator surface consists of two sections of long-radius arcs, two short-radius arcs and four transition curves, and the stator and the rotor are concentric. In the case where the rotor is rotated in the clockwise direction, the volume of the sealing working chamber gradually increases in the upper left corner and the lower right corner, is the oil absorption region, is gradually reduced in the lower left corner and the upper right corner, is a pressure oil region, and a section of sealing oil region is arranged between the oil suction region and the pressure region to separate them. The rotor of such a pump is rotated one revolution, and each sealing working chamber completes two operations of oil absorption and oil pressure, so it is called a double-acting vane pump. Two of the pumps The oil suction region and the two pressure regions are radially symmetric, and the liquid pressure acting on the rotor is balanced radially, so that it is also referred to as a balanced vane pump.
Our advantage .
1 . No MOQ. sample order accept .
2 . Big company cooperration experience , C . G . R . ETP .
3 . 10 years working experience .
4 . Fast delivery within 3 days .
