Product Details:
Payment & Shipping Terms:
|
| Name: | Hydraulic Gear Pump | Material: | Iron Aluminum Stainless Steel |
|---|---|---|---|
| Color: | Yellow | Warranty: | 1 Year |
| Pump Type: | Gear Pump | Appliion: | D50A-15 Main Clutch Pump |
| High Light: | cast iron gear pump,loader hydraulic pump |
||

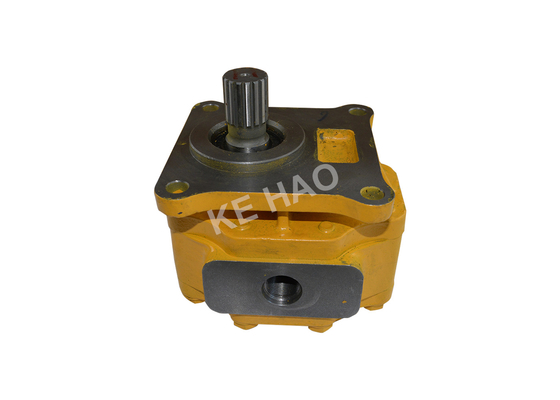

High quality Hydraulic Gear Pump, ,Bulldozer part Hydraulic Pilot Pump 07437-71300 D50A-15 Main Clutch Pump
What parameter you need to send us :
If you need the gear pump , please send us the pump picture and machine model , so we can check it easily .
If you need the hydraulic pump parts , you can send us the size of the piston shoe , so we can check the parts according to the piston shoe size , but it will be better if you send me the nameplate of the pump and pump picture .
Product Description:
| appliion | Bulldozer 07437-71300 D50A-15 Main Clutch Pump |
| Part name | Gear pump |
| Material | iron aluminum stainless steel |
| MOQ | 1PC |
| Warranty | 6 months |
| Payment term | T/T&Western Union &Paypal |
| Delivery Time | About 1-6 Days After Receiving The Deposit(Based On The Quantity) |
| Packing | Standard shipping package |
| main markets |
America:USA, Columbia, Canada, Mexico, Brazil, Peru etc. Europe: Russia, German, France, Italy, Spain, Ukrain, Poland, Austra etc. Asia: Iran, Indonesia, India, Singapore, Malaysia, Korea, Philippines, Vietnam etc. Africa: Ejypt, Kenya, Morocco, Mauritius, Ghana Oceanica: Australia, New Zealand |
| 07437-71301 | 07437-71300 | D50P-15 D50S-15 |
| 1 | • BRACKET | |
| • BRACKET | ||
| 2 | 07434-71160 | • SEAL |
| 3 | 04065-05020 | • RING |
| 4 | • CASE | |
| 5 | • HOUSING | |
| • HOUSING | ||
| 6 | • GEAR,DRIVE | |
| • GEAR,DRIVE | ||
| 7 | • GEAR,DRIVEN | |
| • GEAR,DRIVEN | ||
| 8 | • BEARING | |
| • BEARING | ||
| 9 | • BOLT | |
| 10 | • BOLT | |
| • BOLT | ||
| 11 | • NUT | |
| • NUT | ||
| 12 | • WASHER | |
| • WASHER | ||
| 13 | 07000-03082 | O-RING (KIT) |
| 14 | 01040-31235 | BOLT |
| 15 | 01602-01236 | WASHER |
| 16 | 131-10-54110 | ELBOW |
| 131-10-44340 | ELBOW | |
| 17 | 07002-02434 | O-RING (KIT) |
| 07000-03020 | O-RING (KIT) | |
| 18 | 07239-12410 | NUT |
| 01501-32410 | NUT | |
| 19 | 07000-03038 | O-RING (KIT) |
| 20 | 01010-31035 | BOLT |
| 21 | 01602-01030 | WASHER |
Appliion :
| 705-11-20010 | Single pump | D31P-17D31Q-20 |
| 705-52-21000 | Double pump | D40 |
| 705-12-32210 | Double pump | D40 |
| 705-52-21070 | Double pump | D41E-6K |
| 705-52-21170=21070 | Double pump | D41Q-3 |
| 704-12-38100 | Single pump | D50A-16/18 D53 |
| 07426-71400 | Single pump | D50P-16/D50A-17 |
| 07427-72400 | Single pump | D50A-17 |
| 07429-71203 | Single pump | D50/D53/D57 |
| 07429-72302 | Single pump | D50A-17 |
| 07432-72203 | Single pump | D53 |
| 704-11-38100 | Single pump | D53A-16/18 D53P-16/17/18 |
| 07400-30200 | Double pump | D50P-16/D50A-17 |
| 07400-40400 | Double pump | D50A-17 |
| 07400-40500 | Double pump | D50/D60/D70 |
| 07400-30100 | Double pump | D53/D75-3 |
| 705-41-01320 | Single pump | D60-12/D65-12/D85-2 |
| 07443-67503 | Single pump | D60/D65 |
| 07441-67503 | Single pump | D60/D65/D70TY160 |
| 07430-72203=07430-72202 | Single pump | D60/D65 |
Our Advantage,
1. We provide a variety of gear hydraulic pumps, seals etc .
2 . KE HAO always offers a money back guarantee if you should ever be less than satisfied with our products or services. When you go to check out there are no hidden fees or charges .
3 . We have supplied high quality, reasonably priced components and units to hundreds of customers. We stock a wide range of new, used and remanufactured spare parts for all types of Gear Pump .
4 . The pictures only capture a fraction of what we have in store, so get in touch and ask more ! If we don’t have in store what you need, we will find it for you .
FAQ:
Can gear pumps be reversed?
If the direction of rotation of the motor (and therefore the drive gear) is reversed, the direction of flow thru the pump will also reverse. ... Gear pumps are capable of self-priming because the rotating gears evacuate air in the suction line.
