Product Details:
Payment & Shipping Terms:
|
| Name: | Komatsu Hydraulic Gear Pump | Material: | Aluminium Alloy |
|---|---|---|---|
| Warranty: | 1 Year | Product Name: | Hydraulic Gear Pump |
| Color: | Silver | Appliion: | WA320-3 W300-3 |
| High Light: | hydraulic pump komatsu,excavator hydraulic parts |
||

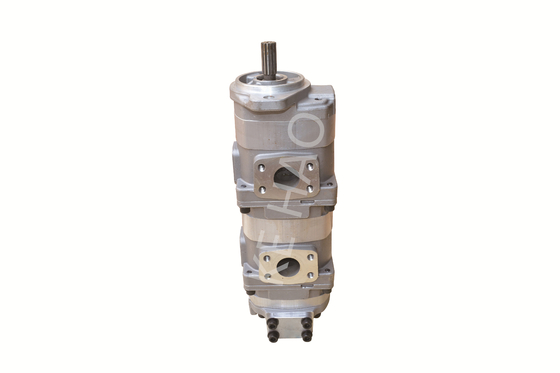

Medium High Pressure 705-55-24130 Hydraulic Pump
High quality Hydraulic Gear Pump, DUMP TRUCK part Hydraulic Pump
What parameter you need to send us :
If you need the gear pump , please send us the pump picture and machine model , so we can check it easily .
If you need the hydraulic pump parts , you can send us the size of the piston shoe , so we can check the parts according to the piston shoe size , but it will be better if you send me the nameplate of the pump and pump picture .
Product Description:
| Part No | 705-55-24130 |
| Condition | New |
| OEM | Yes(Made In China) |
| Material | Aluminium Alloy |
| Spare Parts | Special Designed wearable Spline,O-rings and bushes to last long service life |
| Characters | No Oil Leak, Durable Shaft, Genuine Standard |
| Warranty | One Year |
| Package | Standard Export Wooden/Carton Cases |
| Weight | About 5-50KG |
| Appliion | Loader, Dozer, Excavator, Dumper, Grader, tractor, forklift truck etc. |
| Delivery Time | About 1-6 Days After Receiving The Deposit(Based On The Quantity) |
| Price | Factory Supply With Competitive Price |
| Quality Control | All Pumps Will Be Tested And Double Checked Before Shipping To Make Sure What You Received Is Perfect. |
| Payment | Flexible Payment As TT,Western Union,Paypal, Credit Card, Visa etc. |
|
Main Markets |
America:USA, Columbia, Canada, Mexico, Brazil, Peru etc. Europe: Russia, German, France, Italy, Spain, Ukrain, Poland, Austra etc. Asia: Iran, Indonesia, India, Singapore, Malaysia, Korea, Philippines, Vietnam etc. Africa: Ejypt, Kenya, Morocco, Mauritius, Ghana Oceanica: Australia, New Zealand |
| 705-55-24130 | ||
| 705-13-20540 | • PUMP ASS'Y,(SAR(2)8A) | |
| 1 | 705-17-02250 | •• BRACKET |
| 1 | 705-17-02353 | ••• BUSHING |
| 2 | 705-18-20010 | •• CASE,GEAR |
| 3 | 705-17-02160 | •• COVER |
| 3 | 705-17-02353 | ••• BUSHING |
| 4 | 705-18-20450 | •• GEAR,DRIVE |
| 5 | 705-18-20510 | •• GEAR,DRIVEN |
| 6 | 705-17-02612 | •• PLATE,SIDE |
| 7 | 705-17-02430 | •• RING,BACK-UP |
| 8 | 705-17-02460 | •• RING,SEAL |
| 9 | 705-17-02360 | •• O-RING |
| 10 | 04020-01024 | •• PIN,DOWEL |
| 11 | 705-17-02910 | •• PIN,DOWEL |
| 12 | 705-17-02710 | •• BOLT |
| 13 | 01643-51232 | •• WASHER |
| 14 | 705-17-02420 | •• O-RING |
| 15 | 705-17-02374 | •• BOLT |
| 16 | 01643-51032 | •• WASHER |
| 17 | 705-17-02881 | •• PLATE |
| 18 | 07000-33038 | •• O-RING |
| 19 | 01010-51025 | •• BOLT |
| 20 | 01643-51032 | •• WASHER |
Appliion :
| Item No. | Part No. | NOs of Pump | Machine No. |
| 1 | 705-51-20390 | Double pump | WA22-4R |
| 2 | 705-11-21010 | Single pump | WA30-2 |
| 3 | 705-51-21000 | Double pump | WA30-1 |
| 4 | 705-40-01000 | Single pump | WA40-2R |
| 5 | 705-40-01010 | Single pump | WA30-3R |
| 6 | 705-40-01320 | Single pump | WA30-52R |
| 7 | 705-40-01470 | Single pump | WA50-3-C |
| 8 | 705-40-01610 | Single pump | WA30-52R |
| 9 | 705-41-01050 | Single pump | WA100 |
| 10 | 705-80-10000 | Double pump | WA100 |
| 11 | 705-12-31010 | Single pump | WA100 |
| 12 | 704-31-24110 | Single pump | WA100-1 |
| 13 | 705-51-20790 | Double pump | WA120L-3 |
| 14 | 705-11-33011 | Single pump | WA120-3-3T |
| 15 | 705-11-34011 | Single pump | WA120-1 GD705A-4 |
| 16 | 705-11-34060 | Single pump | WA120-1 GD705A-5 |
| 17 | 705-73-30010 | Single pump | WA120-3-4 |
| 18 | 705-51-20180 | Double pump | WA150-1C |
| 19 | 705-56-34690 | Triple pump | WA150-5R |
| 20 | 705-73-29010 | Single pump | WA150-1C |
| 21 | 705-51-20430 | Double pump | WA180 |
| 22 | 705-51-20070 | Double pump | WA180 |
| 23 | 705-51-20400 | Double pump | WA200-1C PC80-1 |
| 24 | 705-51-20640 | Double pump | WA200-1-A |
| 25 | 705-52-20050 | Double pump | WA200-1C PC80-1 |
| 26 | 705-51-20150 | Double pump | WA200-1C PC80-1 |
| 27 | 705-56-26080 | Quadruple pump | WA200-5 |
| 28 | 705-56-26081 | Quadruple pump | WA200-5 |
| 29 | 705-56-26090 | Quadruple pump | WA200-6 |
| 30 | 705-56-36040 | Quadruple pump | WA250L1C |
Instruction Manual of Installationand Operation for Gear Pump
Program of pump drive shaft and machine output shaft Max.0.05mm . The inside of spline bushing worn parts has been replaced at the proper time , or Coaxial degree might have influence. Measurement the pump of brack installation and connection structure verticality less 0.05mm . It must be check machine drive and pump drive shaft Concentricity within 0.05mm .
