Product Details:
Payment & Shipping Terms:
|
| Name: | Komatsu Hydraulic Gear Pump | Material: | Aluminium Alloy |
|---|---|---|---|
| Warranty: | 1 Year | Product Name: | Hydraulic Gear Pump |
| Color: | Silver | Appliion: | PC750-6 PC800-7 |
| High Light: | hydraulic pump komatsu,excavator hydraulic parts |
||

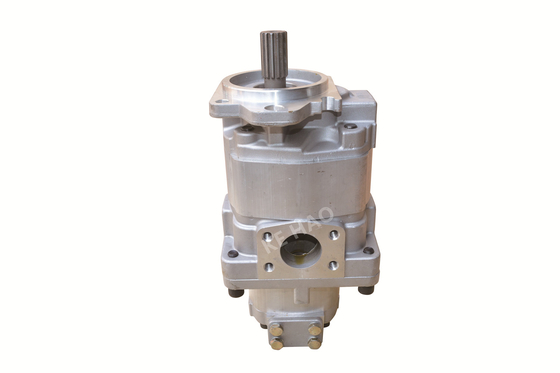

Medium High Pressure 705-52-31070 705-52-30130 705-52-30260 Hydraulic Pump
High quality Hydraulic Gear Pump, DUMP TRUCK part Hydraulic Pump
What parameter you need to send us :
If you need the gear pump , please send us the pump picture and machine model , so we can check it easily .
If you need the hydraulic pump parts , you can send us the size of the piston shoe , so we can check the parts according to the piston shoe size , but it will be better if you send me the nameplate of the pump and pump picture .
Product Description:
| Part No | 705-52-31070 705-52-30130 705-52-30260 |
| Condition | New |
| OEM | Yes(Made In China) |
| Material | Aluminium Alloy |
| Spare Parts | Special Designed wearable Spline,O-rings and bushes to last long service life |
| Characters | No Oil Leak, Durable Shaft, Genuine Standard |
| Warranty | One Year |
| Package | Standard Export Wooden/Carton Cases |
| Weight | About 5-50KG |
| Appliion | Loader, Dozer, Excavator, Dumper, Grader, tractor, forklift truck etc. |
| Delivery Time | About 1-6 Days After Receiving The Deposit(Based On The Quantity) |
| Price | Factory Supply With Competitive Price |
| Quality Control | All Pumps Will Be Tested And Double Checked Before Shipping To Make Sure What You Received Is Perfect. |
| Payment | Flexible Payment As TT,Western Union,Paypal, Credit Card, Visa etc. |
|
Main Markets |
America:USA, Columbia, Canada, Mexico, Brazil, Peru etc. Europe: Russia, German, France, Italy, Spain, Ukrain, Poland, Austra etc. Asia: Iran, Indonesia, India, Singapore, Malaysia, Korea, Philippines, Vietnam etc. Africa: Ejypt, Kenya, Morocco, Mauritius, Ghana Oceanica: Australia, New Zealand |
| 705-52-31070 | ||
| 705-22-20040 | • PUMP ASS'Y (SAR1-8) | |
| 1 | 705-19-01540 | •• BRACKET |
| 1 | 705-17-01350 | ••• BUSHING |
| 2 | 705-17-20011 | •• CASE,GEAR |
| 3 | 705-17-01120 | •• COVER ASS'Y |
| 3 | 705-17-01350 | ••• BUSHING |
| 4 | 705-17-20450 | •• GEAR,DRIVE |
| 5 | 705-17-20511 | •• GEAR,DRIVEN |
| 6 | 705-17-01610 | •• PLATE,SIDE |
| 7 | 705-67-01440 | •• RING,BACK-UP |
| 8 | 705-67-01470 | •• SEAL |
| 9 | 705-67-01380 | •• O-RING |
| 10 | 04020-00820 | •• PIN,DOWEL |
| 11 | 705-17-02710 | •• BOLT |
| 12 | 01643-51232 | •• WASHER |
| 13 | 705-17-01960 | •• SEAL,OIL |
| 14 | 705-17-01860 | •• PLATE |
| 15 | 04065-03212 | •• RING,SNAP |
| 16 | 04020-01228 | •• PIN,DOWEL |
| 17 | 705-19-01330 | • COUPLING |
| 18 | 705-17-03381 | • O-RING |
| 19 | 705-19-03470 | • BOLT |
| 20 | 705-17-04980 | • WASHER |
Appliion :
| Part No. | NOs of Pump | Machine No. |
| 705-56-24080 | Triple pump | PC60-3C |
| 705-58-24010 | Triple pump | PC60-2R |
| 705-21-30251 | Single pump | PC75 |
| 705-22-30150 | Single pump | PC75UD-3 |
| 705-24-29090 | Single pump | PC75UU-3 PC78US-5 |
| 705-40-01370 | Single pump | PC75UU-2E |
| 705-58-34000 | Triple pump | PC100-3C |
| 705-58-34010 | Triple pump | PC100-4C |
| 705-56-34000 | Triple pump | PC120-1/2 |
| 705-56-24090 | Triple pump | PC200-1/2/3/5 |
| 705-56-24020 | Triple pump | PC200-1 |
| 705-56-24030 | Triple pump | PC200-1 |
| 705-51-10020 | Double pump | PC200-2 |
| 705-51-20110 | Double pump | PC200 |
| 704-24-26430 | Single pump | PC100-6 PC120-6 PC130-6 PC350-6 |
| 704-24-28203 | Single pump | PC200-5 |
| 704-24-28230 | Single pump | PC200-5 |
| 705-21-26050 | Single pump | PC120-1/2 |
| 704-24-24420 | Single pump | PC200-9R |
| 705-52-11101 | Double pump | PC600LC-6 |
| 705-52-21140 | Double pump | PC600-6/7 PC650-6 PC600LC-6 |
| 705-52-30011 | Double pump | PC650-1 |
| 705-52-31070 | Double pump | PC750/PC800 |
| 705-56-34360 | Triple pump | PC1250-0 |
| 705-51-31060 | Double pump | PC1800-C |
Instruction Manual of Installationand Operation for Gear Pump
Program of pump drive shaft and machine output shaft Max.0.05mm . The inside of spline bushing worn parts has been replaced at the proper time , or Coaxial degree might have influence. Measurement the pump of brack installation and connection structure verticality less 0.05mm . It must be check machine drive and pump drive shaft Concentricity within 0.05mm .
