Product Details:
Payment & Shipping Terms:
|
Name: | Komatsu Hydraulic Gear Pump | Material: | Aluminium Alloy |
---|---|---|---|
Warranty: | 1 Year | Product Name: | Hydraulic Gear Pump |
Color: | Silver | Appliion: | Dump Truck HM350-1 |
High Light: | hydraulic pump komatsu,excavator hydraulic parts |

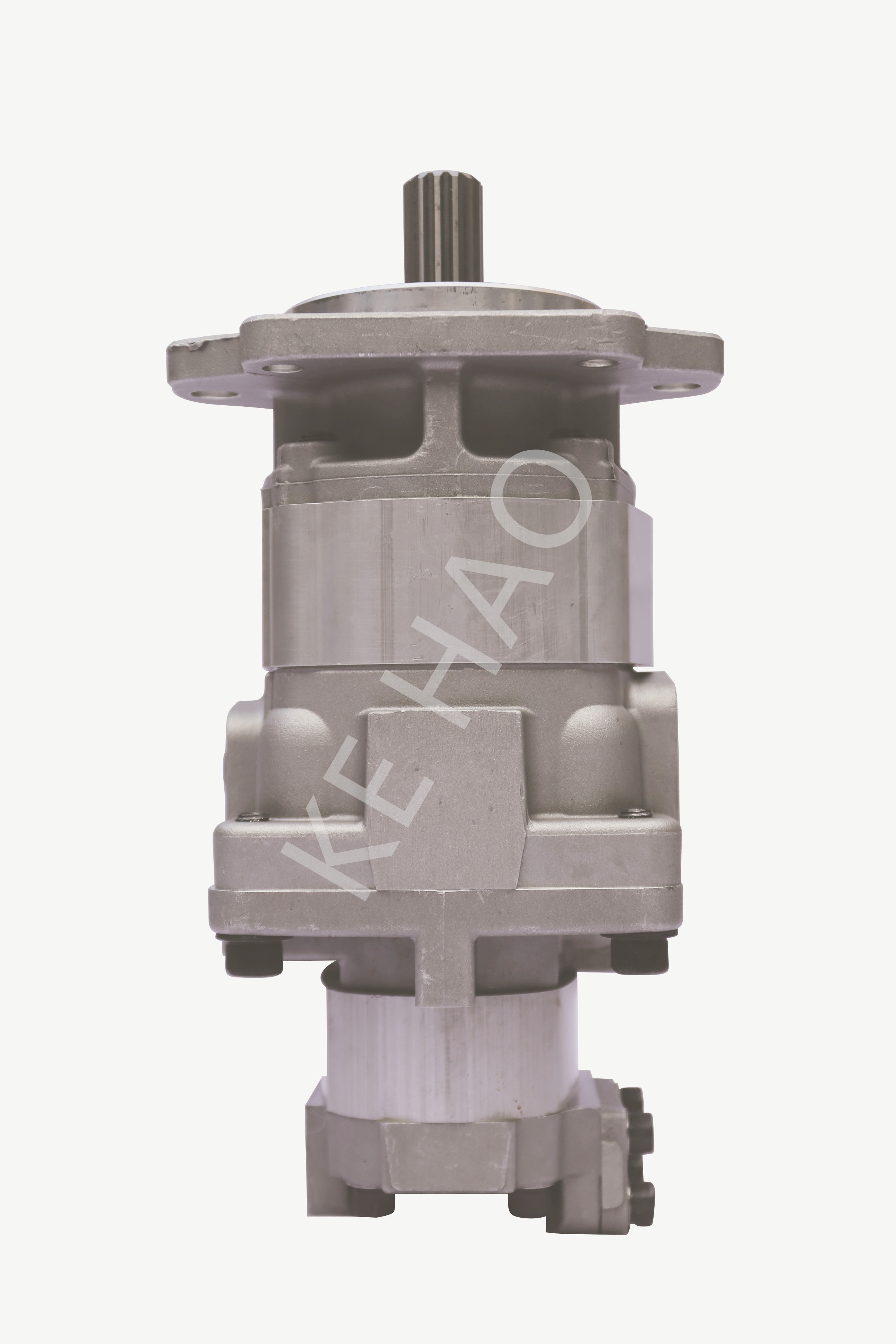

Medium High Pressure 705-52-31170 Hydraulic Pump
High quality Hydraulic Gear Pump, DUMP TRUCK part Hydraulic Pump
What parameter you need to send us :
If you need the gear pump , please send us the pump picture and machine model , so we can check it easily .
If you need the hydraulic pump parts , you can send us the size of the piston shoe , so we can check the parts according to the piston shoe size , but it will be better if you send me the nameplate of the pump and pump picture .
Product Description:
Part No | 705-52-31170 |
Condition | New |
OEM | Yes(Made In China) |
Material | Aluminium Alloy |
Spare Parts | Special Designed wearable Spline,O-rings and bushes to last long service life |
Characters | No Oil Leak, Durable Shaft, Genuine Standard |
Warranty | One Year |
Package | Standard Export Wooden/Carton Cases |
Weight | About 5-50KG |
Appliion | Loader, Dozer, Excavator, Dumper, Grader, tractor, forklift truck etc. |
Delivery Time | About 1-6 Days After Receiving The Deposit(Based On The Quantity) |
Price | Factory Supply With Competitive Price |
Quality Control | All Pumps Will Be Tested And Double Checked Before Shipping To Make Sure What You Received Is Perfect. |
Payment | Flexible Payment As TT,Western Union,Paypal, Credit Card, Visa etc. |
Main Markets |
America:USA, Columbia, Canada, Mexico, Brazil, Peru etc. Europe: Russia, German, France, Italy, Spain, Ukrain, Poland, Austra etc. Asia: Iran, Indonesia, India, Singapore, Malaysia, Korea, Philippines, Vietnam etc. Africa: Ejypt, Kenya, Morocco, Mauritius, Ghana Oceanica: Australia, New Zealand |
705-52-31170 | HD605-7 HD465-7 | |
705-34-28840 | • PUMP ASS'Y,(SAR25) | |
1 | 705-19-01541 | •• BRACKET |
1 | 705-17-01351 | ••• BUSHING,PLANE |
2 | 705-17-28010 | •• CASE,GEAR |
3 | 705-18-01141 | •• COVER ASS'Y |
3 | 705-17-01351 | ••• BUSHING,PLANE |
4 | 705-17-28450 | •• GEAR,DRIVE |
5 | 705-17-28510 | •• GEAR,DRIVEN |
6 | 705-17-01610 | •• PLATE,SIDE |
7 | 705-67-01470 | •• SEAL,SEAL |
8 | 705-67-01440 | •• RING,BACK-UP |
9 | 705-67-01380 | •• O-RING |
10 | 04020-00820 | •• PIN,DOWEL |
11 | 01252-61290 | •• BOLT |
12 | 01643-51232 | •• WASHER |
13 | 705-17-01860 | •• PLATE |
14 | 705-17-01950 | •• SEAL,DUST |
15 | 04065-03212 | •• RING,SNAP |
16 | 04020-01228 | •• PIN,DOWEL |
17 | 705-19-01330 | • COUPLING |
18 | 705-17-03381 | • O-RING |
19 | 01252-61445 | • BOLT |
20 | 705-17-04980 | • WASHER |
Appliion :
Part No. | NOs of Pump | Machine No. | |
1 | 07439-66103 | Single pump | Hd325 |
2 | 705-11-23010 | Single pump | HD205/HD255/HD320 HD325/HD405/HD465 |
3 | 705-12-38000 | Single pump | HD325-6 |
4 | 705-12-38010 | Single pump | HD325-6 |
5 | 705-12-38211 | Single pump | HD465/HD605 |
6 | 705-22-38050 | Single pump | HD325-6 |
7 | 705-22-40110 | Single pump | HM400-1WA500-1 |
8 | 705-22-44020 | Single pump | HD785-3/5 HD985-3/5 |
9 | 705-41-02630 | Single pump | HP500-7R |
10 | 705-41-07051 | Double pump | HM400-2 |
11 | 705-51-42010 | Double pump | HD785-2 |
12 | 705-52-20070 | Double pump | HD255 |
13 | 705-52-20090 | Double pump | HD205-3 |
14 | 705-52-22000 | Double pump | HD205-3 |
15 | 705-52-30040 | Double pump | HD255-5 |
16 | 705-52-30050 | Double pump | HD325-5 |
17 | 705-52-30290 | Double pump | HD255-5 |
18 | 705-52-30360 | Double pump | HD255-5C |
19 | 705-52-31010 | Double pump | HD465-7 |
20 | 705-52-31150 | Double pump | HM400-1C |
21 | 705-52-31170 | Double pump | HD465-7 |
22 | 705-52-31180 | Double pump | HM300-1 |
23 | 705-52-31210 | Double pump | HM350-1 |
24 | 705-52-31250 | Double pump | HM300-1 |
25 | 705-52-32000 | Double pump | HD465-3/5 HD605-5 |
26 | 705-52-42090 | Double pump | HD785-3 |
27 | 705-52-42100 | Double pump | HD785-3 |
28 | 705-52-42220 | Double pump | HD785-3 |
29 | 705-56-31040 | Triple gear pump | HM300/HM350 |
30 | 705-56-33040 | Triple gear pump | HM400-1C |
31 | 705-56-33050 | Triple gear pump | HM350-1 |
32 | 705-56-33080 | Triple gear pump | HM400-1C |
33 | 705-56-33140 | Quadruple pump | HM400-3S/N |
34 | 705-56-34450 | Triple gear pump | HM300-1 |
35 | 705-56-34490 | Triple gear pump | HM400-1 |
36 | 705-56-34590 | Triple gear pump | HM350-1 |
37 | 705-56-34630 | Triple gear pump | HD465-7 |
38 | 705-56-44090 | Triple gear pump | HM350-1/HD785-7 |
39 | 705-95-03020 | Double pump | HD465-0C |
40 | 705-95-07100 | Triple gear pump | HD465-0C |
Instruction Manual of Installationand Operation for Gear Pump
Program of pump drive shaft and machine output shaft Max.0.05mm . The inside of spline bushing worn parts has been replaced at the proper time , or Coaxial degree might have influence. Measurement the pump of brack installation and connection structure verticality less 0.05mm . It must be check machine drive and pump drive shaft Concentricity within 0.05mm .
