Product Details:
Payment & Shipping Terms:
|
| Name: | Komatsu Hydraulic Gear Pump | Material: | Aluminium Alloy |
|---|---|---|---|
| Warranty: | 1 Year | Product Name: | Hydraulic Gear Pump |
| Color: | Silver | Appliion: | Dump Truck HM350-1 |
| High Light: | hydraulic pump komatsu,excavator hydraulic parts |
||

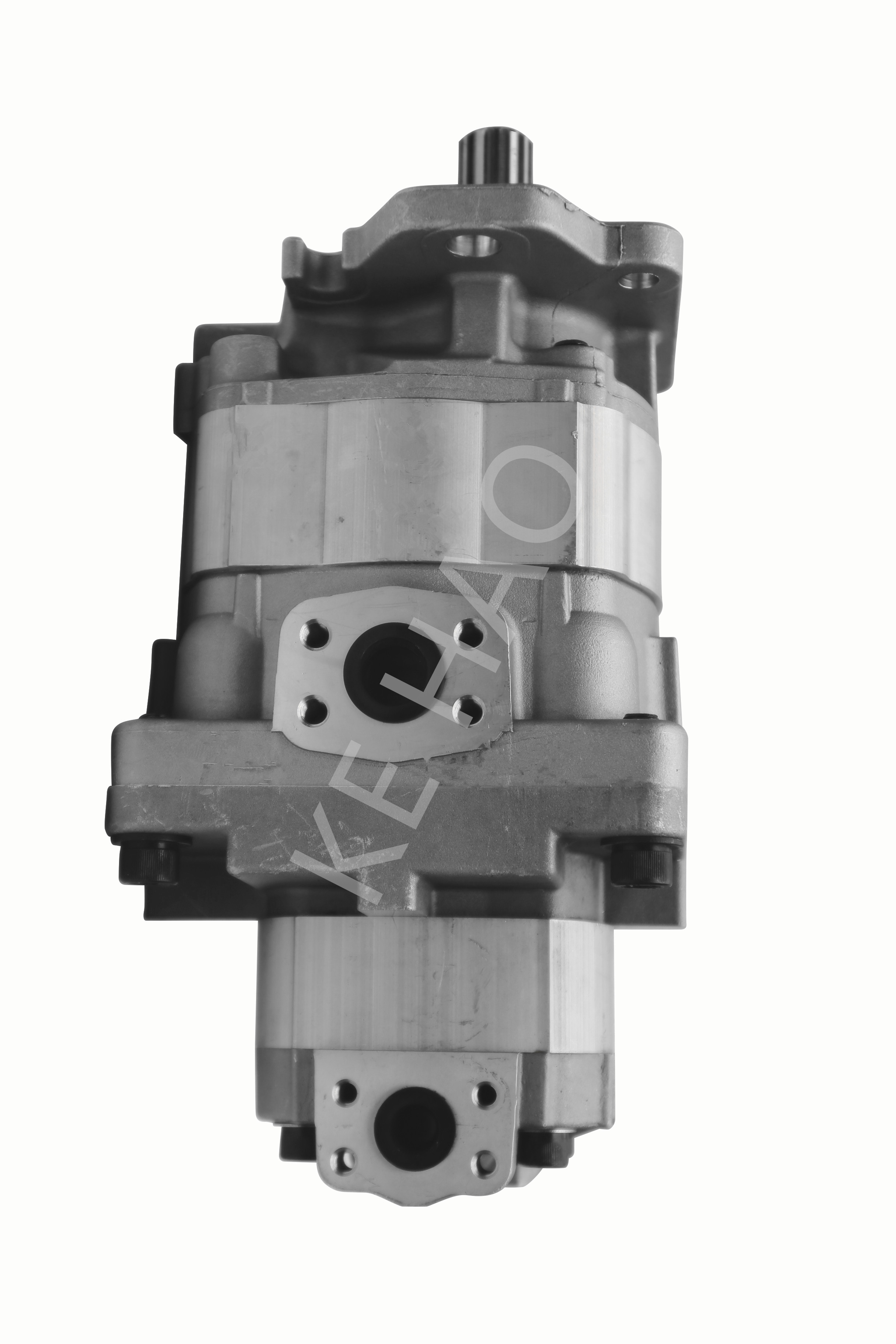

Medium High Pressure 705-52-31210 Loader Hydraulic Pump
High quality Hydraulic Gear Pump, DUMP TRUCK part Hydraulic Pump
What parameter you need to send us :
If you need the gear pump , please send us the pump picture and machine model , so we can check it easily .
If you need the hydraulic pump parts , you can send us the size of the piston shoe , so we can check the parts according to the piston shoe size , but it will be better if you send me the nameplate of the pump and pump picture .
Product Description:
| Part No | 705-52-31210 |
| Condition | New |
| OEM | Yes(Made In China) |
| Material | Aluminium Alloy |
| Spare Parts | Special Designed wearable Spline,O-rings and bushes to last long service life |
| Characters | No Oil Leak, Durable Shaft, Genuine Standard |
| Warranty | One Year |
| Package | Standard Export Wooden/Carton Cases |
| Weight | About 5-50KG |
| Appliion | Loader, Dozer, Excavator, Dumper, Grader, tractor, forklift truck etc. |
| Delivery Time | About 1-6 Days After Receiving The Deposit(Based On The Quantity) |
| Price | Factory Supply With Competitive Price |
| Quality Control | All Pumps Will Be Tested And Double Checked Before Shipping To Make Sure What You Received Is Perfect. |
| Payment | Flexible Payment As TT,Western Union,Paypal, Credit Card, Visa etc. |
|
Main Markets |
America:USA, Columbia, Canada, Mexico, Brazil, Peru etc. Europe: Russia, German, France, Italy, Spain, Ukrain, Poland, Austra etc. Asia: Iran, Indonesia, India, Singapore, Malaysia, Korea, Philippines, Vietnam etc. Africa: Ejypt, Kenya, Morocco, Mauritius, Ghana Oceanica: Australia, New Zealand |
| 705-52-31210 | ||
| 705-34-25640 | • PUMP ASS'Y,(SAR18) | |
| 1 | 705-19-01540 | •• BRACKET |
| 1 | 705-17-01350 | ••• BUSHING,PLANE |
| 2 | 705-17-25010 | •• CASE,GEAR |
| 3 | 705-17-01120 | •• COVER ASS'Y |
| 3 | 705-17-01350 | ••• BUSHING,PLANE |
| 4 | 705-17-25450 | •• GEAR,DRIVE |
| 5 | 705-17-25510 | •• GEAR,DRIVEN |
| 6 | 705-17-01610 | •• PLATE,SIDE |
| 7 | 705-67-01470 | •• SEAL |
| 8 | 705-67-01440 | •• RING,BACK-UP |
| 9 | 705-67-01380 | •• O-RING |
| 10 | 04020-00820 | •• PIN,DOWEL |
| 11 | 01252-61280 | •• BOLT |
| 12 | 01643-51232 | •• WASHER |
| 13 | 04020-01228 | •• PIN,DOWEL |
| 14 | 705-17-01860 | •• PLATE |
| 15 | 705-17-01950 | •• SEAL,OIL |
| 16 | 04065-03212 | •• RING,SNAP |
| 17 | 705-19-01330 | • COUPLING |
| 18 | 705-17-03381 | • O-RING |
| 19 | 01252-61445 | • BOLT |
| 20 | 705-17-04980 | • WASHER |
Appliion :
| Part No. | NOs of Pump | Machine No. |
| 07439-66103 | Single pump | Hd325 |
| 705-11-23010 | Single pump | HD205/HD255/HD320 HD325/HD405/HD465 |
| 705-12-38000 | Single pump | HD325-6 |
| 705-12-38010 | Single pump | HD325-6 |
| 705-12-38211 | Single pump | HD465/HD605 |
| 705-22-38050 | Single pump | HD325-6 |
| 705-22-40110 | Single pump | HM400-1WA500-1 |
| 705-22-44020 | Single pump | HD785-3/5 HD985-3/5 |
| 705-41-02630 | Single pump | HP500-7R |
| 705-41-07051 | Double pump | HM400-2 |
| 705-51-42010 | Double pump | HD785-2 |
| 705-52-20070 | Double pump | HD255 |
| 705-52-20090 | Double pump | HD205-3 |
| 705-52-22000 | Double pump | HD205-3 |
| 705-52-30040 | Double pump | HD255-5 |
| 705-52-30050 | Double pump | HD325-5 |
| 705-52-30290 | Double pump | HD255-5 |
| 705-52-30360 | Double pump | HD255-5C |
| 705-52-31010 | Double pump | HD465-7 |
| 705-52-31150 | Double pump | HM400-1C |
| 705-52-31170 | Double pump | HD465-7 |
| 705-52-31180 | Double pump | HM300-1 |
| 705-52-31210 | Double pump | HM350-1 |
| 705-52-31250 | Double pump | HM300-1 |
| 705-52-32000 | Double pump | HD465-3/5 HD605-5 |
| 705-52-42090 | Double pump | HD785-3 |
| 705-52-42100 | Double pump | HD785-3 |
| 705-52-42220 | Double pump | HD785-3 |
| 705-56-31040 | Triple gear pump | HM300/HM350 |
| 705-56-33040 | Triple gear pump | HM400-1C |
| 705-56-33050 | Triple gear pump | HM350-1 |
| 705-56-33080 | Triple gear pump | HM400-1C |
| 705-56-33140 | Quadruple pump | HM400-3S/N |
| 705-56-34450 | Triple gear pump | HM300-1 |
| 705-56-34490 | Triple gear pump | HM400-1 |
| 705-56-34590 | Triple gear pump | HM350-1 |
| 705-56-34630 | Triple gear pump | HD465-7 |
| 705-56-44090 | Triple gear pump | HM350-1/HD785-7 |
| 705-95-03020 | Double pump | HD465-0C |
| 705-95-07100 | Triple gear pump | HD465-0C |
Instruction Manual of Installationand Operation for Gear Pump
Program of pump drive shaft and machine output shaft Max.0.05mm . The inside of spline bushing worn parts has been replaced at the proper time , or Coaxial degree might have influence. Measurement the pump of brack installation and connection structure verticality less 0.05mm . It must be check machine drive and pump drive shaft Concentricity within 0.05mm .
