Product Details:
Payment & Shipping Terms:
|
| Name: | Komatsu Hydraulic Gear Pump | Material: | Aluminium Alloy |
|---|---|---|---|
| Warranty: | 1 Year | Product Name: | Hydraulic Gear Pump |
| Color: | Silver | Model No.: | WA380Z-6 |
| High Light: | hydraulic pump komatsu,excavator hydraulic parts |
||

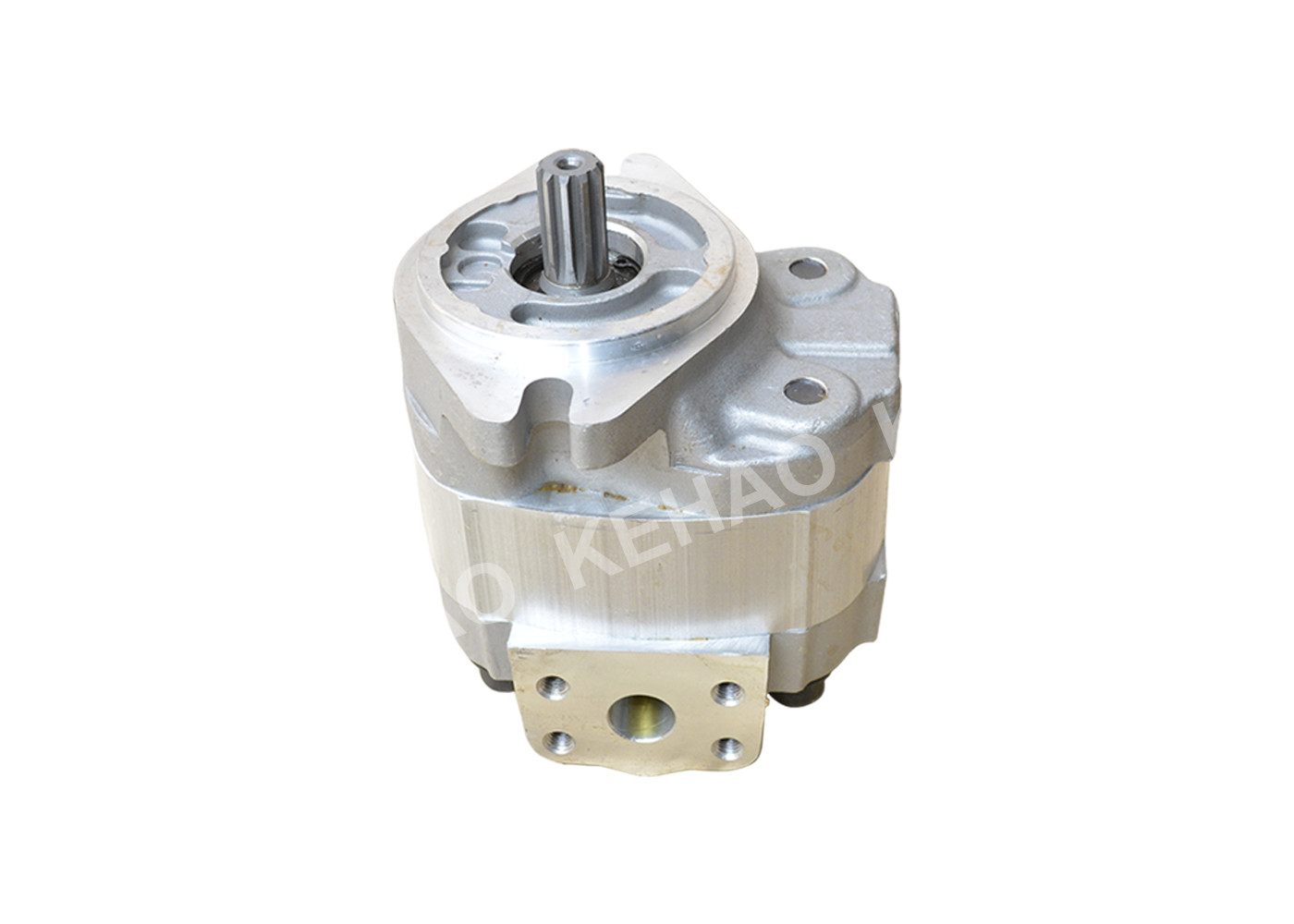

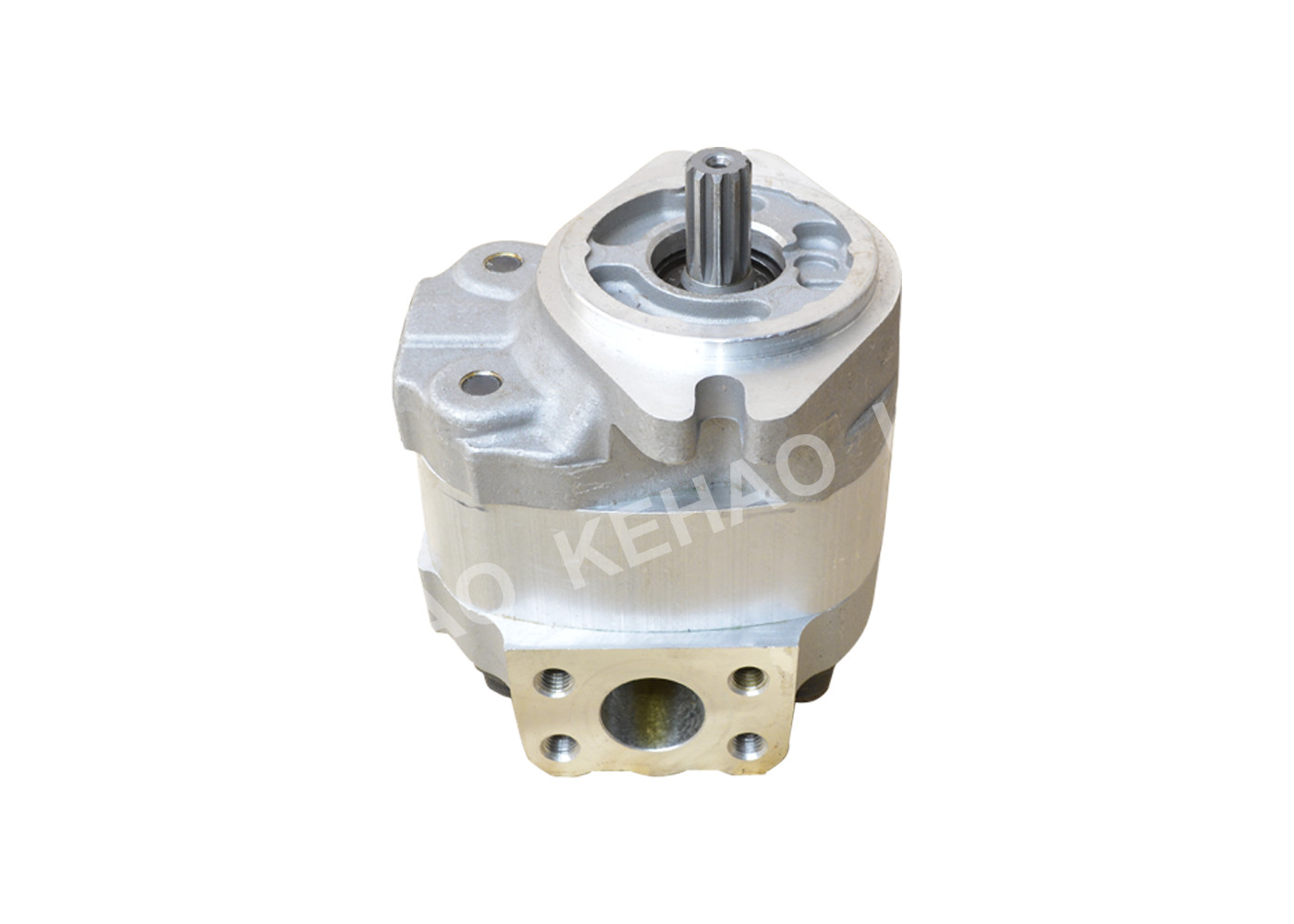

High quality Hydraulic Gear Pump, Excavator part Hydraulic Pump 705-21-28270
What parameter you need to send us :
If you need the gear pump , please send us the pump picture and machine model , so we can check it easily .
If you need the hydraulic pump parts , you can send us the size of the piston shoe , so we can check the parts according to the piston shoe size , but it will be better if you send me the nameplate of the pump and pump picture ,
Product Description:
| Part No | 705-21-28270 |
| Condition | New |
| OEM | Yes(Made In China) |
| Material | Aluminium Alloy |
| Spare Parts | Special Designed wearable Spline,O-rings and bushes to last long service life |
| Characters | No Oil Leak, Durable Shaft, Genuine Standard |
| Warranty | One Year |
| Package | Standard Export Wooden/Carton Cases |
| Weight | About 5-50KG |
| Appliion | Loader, Dozer, Excavator, Dumper, Grader, tractor, forklift truck etc. |
| Delivery Time | About 1-6 Days After Receiving The Deposit(Based On The Quantity) |
| Price | Factory Supply With Competitive Price |
| Quality Control | All Pumps Will Be Tested And Double Checked Before Shipping To Make Sure What You Received Is Perfect. |
| Payment | Flexible Payment As TT,Western Union,Paypal, Credit Card, Visa etc. |
|
Main Markets |
America:USA, Columbia, Canada, Mexico, Brazil, Peru etc. Europe: Russia, German, France, Italy, Spain, Ukrain, Poland, Austra etc. Asia: Iran, Indonesia, India, Singapore, Malaysia, Korea, Philippines, Vietnam etc. Africa: Ejypt, Kenya, Morocco, Mauritius, Ghana Oceanica: Australia, New Zealand |
| 705-21-28270 | ||
| 1 | 705-17-01011 | • Bracket Assembly |
| 705-17-01351 | •• Bushing | |
| 2 | 705-18-01410 | • Cover Assembly |
| 705-17-01351 | •• Bushing | |
| 3 | 705-17-01610 | • Plate, Side |
| 4 | 705-17-01440 | • Ring, Back-up |
| 5 | 705-17-01470 | • Seal Ring |
| 6 | 705-17-01381 | • O-ring |
| 7 | 705-17-01870 | • Plate |
| 8 | 704-17-01810 | • Seal, Oil |
| 9 | 04065-03515 | • Ring, Snap |
| 10 | 705-17-28010 | • Case |
| 11 | 705-18-28610 | • Gear, Drive |
| 12 | 705-17-28510 | • Gear, Driven |
| 13 | 04020-00820 | • Pin, Dowel |
| 14 | 01252-61295 | • Bolt, Hexagon Socket Head |
| 15 | 01643-51232 | • Washer |
Appliion :
| 705-55-33080 | Triple pump | WA380-5WA400-5 |
| 198-49-34100 | Doublepump | WA375A-5R |
| 705-11-36100 | Single pump | WA380 |
| 705-34-34340 | Single pump | WA380 |
| 705-56-34090 | Quadruple pump | WA380-1 |
| 705-11-35010 | Single pump | WA380-1C |
| 5-3-27540 | Single pump | WA380-3 |
| 705-33-28540 | Single pump | WA380-3 |
| 705-21-40020 | Single pump | WA380-3C |
| 705-56-34180 | Quadruple pump | WA380- |
| 705-55-34180 | Quadruple pump | WA380-3C |
| 705-55-34190 | Quadruple pump | WA380-3 |
| 705-51-20440 | Doublepump | WA380-3C |
| 705-52-30080 | Double pump | WA380-1 WA350-0C |
| 705-51-30600 | Double pump | WA380-5 |
| 705-52-30220 | Double pump | WA380-1/WA350-0C |
| 705-52-20140 | Double pump | WA380/WA400 |
| 705-52-20190 | Double pump | WA380-5/WA400-5/WA470-1 |
| 705-52-20240 | Double pump | WA380-5/WA400-5/WA470-1 |
| 704-30-34110 | Single pump | WA400- |
| 705-56-34040 | Triple pump | WA400- |
| 705-56-34240 | Triple pump | WA400-1 |
| 705-56-30560 | Double pump | WA420-3CS |
| 705-56-34100 | Quadruple pump | WA420-1C |
Instruction Manual of Installationand Operation for Gear Pump
When replace new pump , it requirements fill up with hydraulic oil inlet position , and turn a half circle direction to pump rotation . The gear pump
inspection shall be done in this side. After installing, check if the connecting head , seal oring , leak oil , leak out of this pipe . Within 20 mins keeping low speed operation when start up machine ; Be assurance pump inlet tube and flange withou air . The machihe will not be operation and burn shaft if pressure insufficient.
