Product Details:
Payment & Shipping Terms:
|
Name: | Komatsu Hydraulic Gear Pump | Material: | Aluminium Alloy |
---|---|---|---|
Warranty: | 1 Year | Product Name: | Hydraulic Gear Pump |
Color: | Silver | Appliion: | Dump Truck HM350-1 |

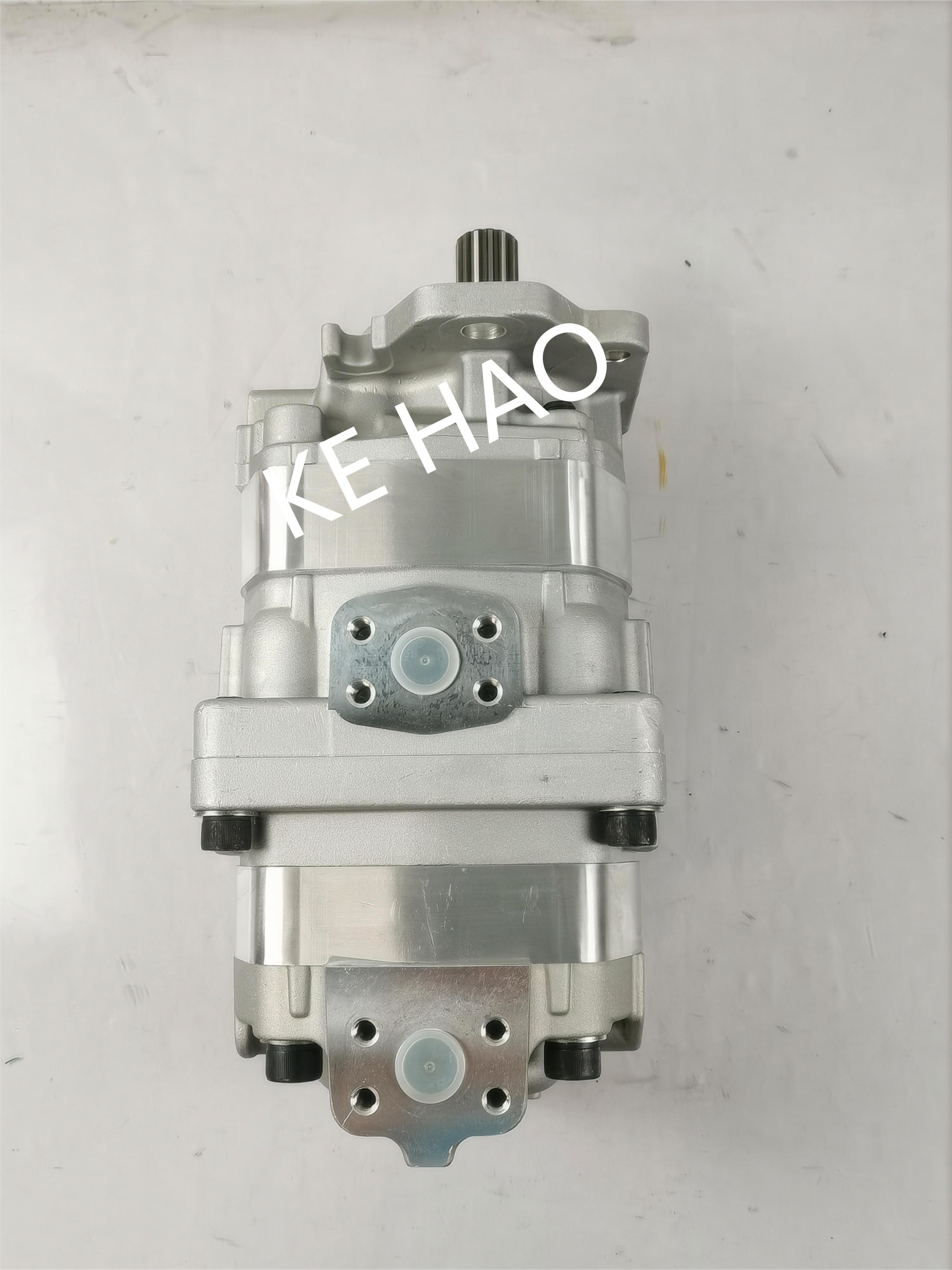

Medium High Pressure 705-52-30360 Loader Hydraulic Pump
High quality Hydraulic Gear Pump, DUMP TRUCK part Hydraulic Pump
Hydraulic pump is a mechanical device used to generate hydraulic energy. It applies mechanical force to pressurize a liquid (usually hydraulic oil) into a system, creating pressure and driving the flow of the liquid through pipelines or systems. Hydraulic pumps are commonly used in industrial, construction, agricultural, and automotive fields to power hydraulic machinery, actuators, and other hydraulic systems.
If you need the hydraulic pump parts , you can send us the size of the piston shoe , so we can check the parts according to the piston shoe size , but it will be better if you send me the nameplate of the pump and pump picture .
Pressure compensation: To meet the requirements of hydraulic systems under different operating conditions, some hydraulic pumps have pressure compensation features. Pressure compensation automatically adjusts the pump's output pressure according to the system's needs, ensuring stable operation under varying loads.
Product Description:
Part No | 705-52-30360 |
Condition | New |
OEM | Yes(Made In China) |
Material | Aluminium Alloy |
Spare Parts | Special Designed wearable Spline,O-rings and bushes to last long service life |
Characters | No Oil Leak, Durable Shaft, Genuine Standard |
Warranty | One Year |
Package | Standard Export Wooden/Carton Cases |
Weight | About 5-50KG |
Appliion | Loader, Dozer, Excavator, Dumper, Grader, tractor, forklift truck etc. |
Delivery Time | About 1-6 Days After Receiving The Deposit(Based On The Quantity) |
Price | Factory Supply With Competitive Price |
Quality Control | All Pumps Will Be Tested And Double Checked Before Shipping To Make Sure What You Received Is Perfect. |
Payment | Flexible Payment As TT,Western Union,Paypal, Credit Card, Visa etc. |
Main Markets |
America:USA, Columbia, Canada, Mexico, Brazil, Peru etc. Europe: Russia, German, France, Italy, Spain, Ukrain, Poland, Austra etc. Asia: Iran, Indonesia, India, Singapore, Malaysia, Korea, Philippines, Vietnam etc. Africa: Ejypt, Kenya, Morocco, Mauritius, Ghana Oceanica: Australia, New Zealand |
705-52-31210 | ||
705-34-25640 | • PUMP ASS'Y,(SAR18) | |
1 | 705-19-01540 | •• BRACKET |
1 | 705-17-01350 | ••• BUSHING,PLANE |
2 | 705-17-25010 | •• CASE,GEAR |
3 | 705-17-01120 | •• COVER ASS'Y |
3 | 705-17-01350 | ••• BUSHING,PLANE |
4 | 705-17-25450 | •• GEAR,DRIVE |
5 | 705-17-25510 | •• GEAR,DRIVEN |
6 | 705-17-01610 | •• PLATE,SIDE |
7 | 705-67-01470 | •• SEAL |
8 | 705-67-01440 | •• RING,BACK-UP |
9 | 705-67-01380 | •• O-RING |
10 | 04020-00820 | •• PIN,DOWEL |
11 | 01252-61280 | •• BOLT |
12 | 01643-51232 | •• WASHER |
13 | 04020-01228 | •• PIN,DOWEL |
14 | 705-17-01860 | •• PLATE |
15 | 705-17-01950 | •• SEAL,OIL |
16 | 04065-03212 | •• RING,SNAP |
17 | 705-19-01330 | • COUPLING |
18 | 705-17-03381 | • O-RING |
19 | 01252-61445 | • BOLT |
20 | 705-17-04980 | • WASHER |
Appliion :
Part No. | NOs of Pump | Machine No. |
07439-66103 | Single pump | Hd325 |
705-11-23010 | Single pump | HD205/HD255/HD320 HD325/HD405/HD465 |
705-12-38000 | Single pump | HD325-6 |
705-12-38010 | Single pump | HD325-6 |
705-12-38211 | Single pump | HD465/HD605 |
705-22-38050 | Single pump | HD325-6 |
705-22-40110 | Single pump | HM400-1WA500-1 |
705-22-44020 | Single pump | HD785-3/5 HD985-3/5 |
705-41-02630 | Single pump | HP500-7R |
705-41-07051 | Double pump | HM400-2 |
705-51-42010 | Double pump | HD785-2 |
705-52-20070 | Double pump | HD255 |
705-52-20090 | Double pump | HD205-3 |
705-52-22000 | Double pump | HD205-3 |
705-52-30040 | Double pump | HD255-5 |
705-52-30050 | Double pump | HD325-5 |
705-52-30290 | Double pump | HD255-5 |
705-52-30360 | Double pump | HD255-5C |
705-52-31010 | Double pump | HD465-7 |
705-52-31150 | Double pump | HM400-1C |
705-52-31170 | Double pump | HD465-7 |
705-52-31180 | Double pump | HM300-1 |
705-52-31210 | Double pump | HM350-1 |
705-52-31250 | Double pump | HM300-1 |
705-52-32000 | Double pump | HD465-3/5 HD605-5 |
705-52-42090 | Double pump | HD785-3 |
705-52-42100 | Double pump | HD785-3 |
705-52-42220 | Double pump | HD785-3 |
705-56-31040 | Triple gear pump | HM300/HM350 |
705-56-33040 | Triple gear pump | HM400-1C |
705-56-33050 | Triple gear pump | HM350-1 |
705-56-33080 | Triple gear pump | HM400-1C |
705-56-33140 | Quadruple pump | HM400-3S/N |
705-56-34450 | Triple gear pump | HM300-1 |
705-56-34490 | Triple gear pump | HM400-1 |
705-56-34590 | Triple gear pump | HM350-1 |
705-56-34630 | Triple gear pump | HD465-7 |
705-56-44090 | Triple gear pump | HM350-1/HD785-7 |
705-95-03020 | Double pump | HD465-0C |
705-95-07100 | Triple gear pump | HD465-0C |
Instruction Manual of Installationand Operation for Gear Pump
Program of pump drive shaft and machine output shaft Max.0.05mm . The inside of spline bushing worn parts has been replaced at the proper time , or Coaxial degree might have influence. Measurement the pump of brack installation and connection structure verticality less 0.05mm . It must be check machine drive and pump drive shaft Concentricity within 0.05mm .
