Product Details:
Payment & Shipping Terms:
|
| Pressure: | High Medium Pressure | Power: | Hydraulic |
|---|---|---|---|
| Structure: | Gear Pump | Material: | Steel,aluminum Alloy,steel / Bronze Gear |
| Warranty: | 1 Year | Color: | Same As Photo |
| High Light: | hydraulic pump,hydraulic pump |
||

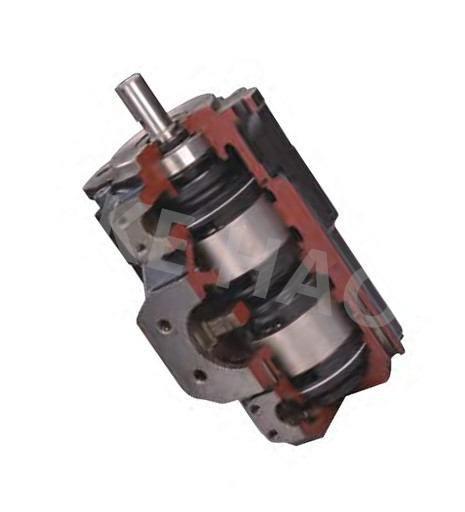

T6,T67,T7 Series Double Vane Pump
| serial number | name | serial number | name | serial number | name |
| 1 | shaft | 6 | Steel wire retaining diagram for shaft | 11 | medium pump body |
| 2 | flat key | 7 | antifriction bearing | 12 | Back core |
| 3 | Outer hexagonal bolt | 8 | elastic block diagram for hole | 13 | rectangular seal |
| 4 | protegulum | 9 | rectangular seal | 14 | rear cover |
| 5 | grease seal | 10 | Front pump core | 15 | Outer hexagonal bolt |
Product Type Description :
| SERIEs | ShaFt end pump displacement |
Cover end pump displacement |
Rotation | Sealing level |
| T7BB | B02,B03,B04,B05,B06,B07,B08,B10,B12,B15 | B02,B03,B04,B05,B06,B07,B08,B10,B12,B15 |
(View from shaft end of pump R-Clockwise(CW) L-unterclockwise(CCW) |
NBR Fluorine rubber |
| T7DB | B14/B17/B20/B22/B24/B28/B31/B35/B38/B42 | B02,B03,B04,B05,B06,B07,B08,B10,B12,B15 | ||
| T7DD | B14/B17/B20/B22/B24/B28/B31/B35/B38/B42 | B14/B17/B20/B22/B24/B28/B31/B35/B38/B42 | ||
| T7EB | 042,045,050,052,057,062,066,072,085 | B02,B03,B04,B05,B06,B07,B08,B10,B12,B15 | ||
| T7ED | 042,045,050,052,057,062,066,072,085 | B14/B17/B20/B22/B24/B28/B31/B35/B38/B42 | ||
| T7EE | 042,045,050,052,057,062,066,072,085 | 042,045,050,052,057,062,066,072,085 | ||
| T67CB |
003/B03,005/B05,006/B06,008/B08,010/B10, 012/B12,014/B14,017/B17,020/B20,022/B22, 025/B25,02B/B2B,031/B31 |
B02,B03,B04,B05,B06,B07,B08,B10,B12,B15 | ||
| T6CC |
003/B03,005/B05,006/B06,008/B08,010/B10, 012/B12,014/B14,017/B17,020/B20,022/B22, 025/B25,02B/B2B,031/B31 |
003/B03,005/B05,006/B06,008/B08,010/B10, 012/B12,014/B14,017/B17,020/B20,022/B22, 025/B25,02B/B2B,031/B31 |
||
| T67DB |
014/B14,017/B17,020/B20,024/B24,028/B28, 031/B31,035/B35,038/B38,042/B42,045/B45, 050/B50,061 |
B02,B03,B04,B05,B06,B07,B08,B10,B12,B15 | ||
| T67DC | B14/B17/B20/B22/B24/B28/B31/B35/B38/B42 |
003/B03,005/B05,006/B06,008/B08,010/B10, 012/B12,014/B14,017/B17,020/B20,022/B22, 025/B25,02B/B2B,031/B31 |
||
| T6DC |
014/017/020/024//02B/031/035/038/042/045 /050/061 |
003/B03,005/B05,006/B06,008/B08,010/B10, 012/B12,014/B14,017/B17,020/B20,022/B22, 025/B25,02B/B2B,031/B31 |
||
| T67EB | 042,045,050,052,057,062,066,072,085 | B02,B03,B04,B05,B06,B07,B08,B10,B12,B15 | ||
| T6EC | 042,045,050,052,057,062,066,072,085 |
003/B03,005/B05,006/B06,008/B08,010/B10, 012/B12,014/B14,017/B17,020/B20,022/B22, 025/B25,02B/B2B,031/B31 |
||
| T67EC | 042,045,050,052,057,062,066,072,085 |
003/B03,005/B05,006/B06,008/B08,010/B10, 012/B12,014/B14,017/B17,020/B20,022/B22, 025/B25,02B/B2B,031/B31 |
||
| T6ED | 042,045,050,052,057,062,066,072,085 |
014/B14,017/B17,020/B20,024/B24,028/B28, 031/B31,035/B35,038/B38,042/B42,045/B45, 050/B50,061 |
||
| T6EE | 042,045,050,052,057,062,066,072,085 | 042,045,050,052,057,062,066,072,085 |
Our advange :
1 . Our pumps and parts are of exceptional quality .
2 . Our equipment is provided at an economic cost .
3 . We are proud of our fast response time and quick delivery times .
4 . We maintain a comprehensive stock-holding of spares .
5 . We carry out in-house porting to exact customer requirements .
6 . We have a professional custom-design capability at your service .
7 . We deliver internationally .
8 . Our Company Supply Parts For Excavators:Aftermarket Parts / Oem / Original / Made In China .
